Description

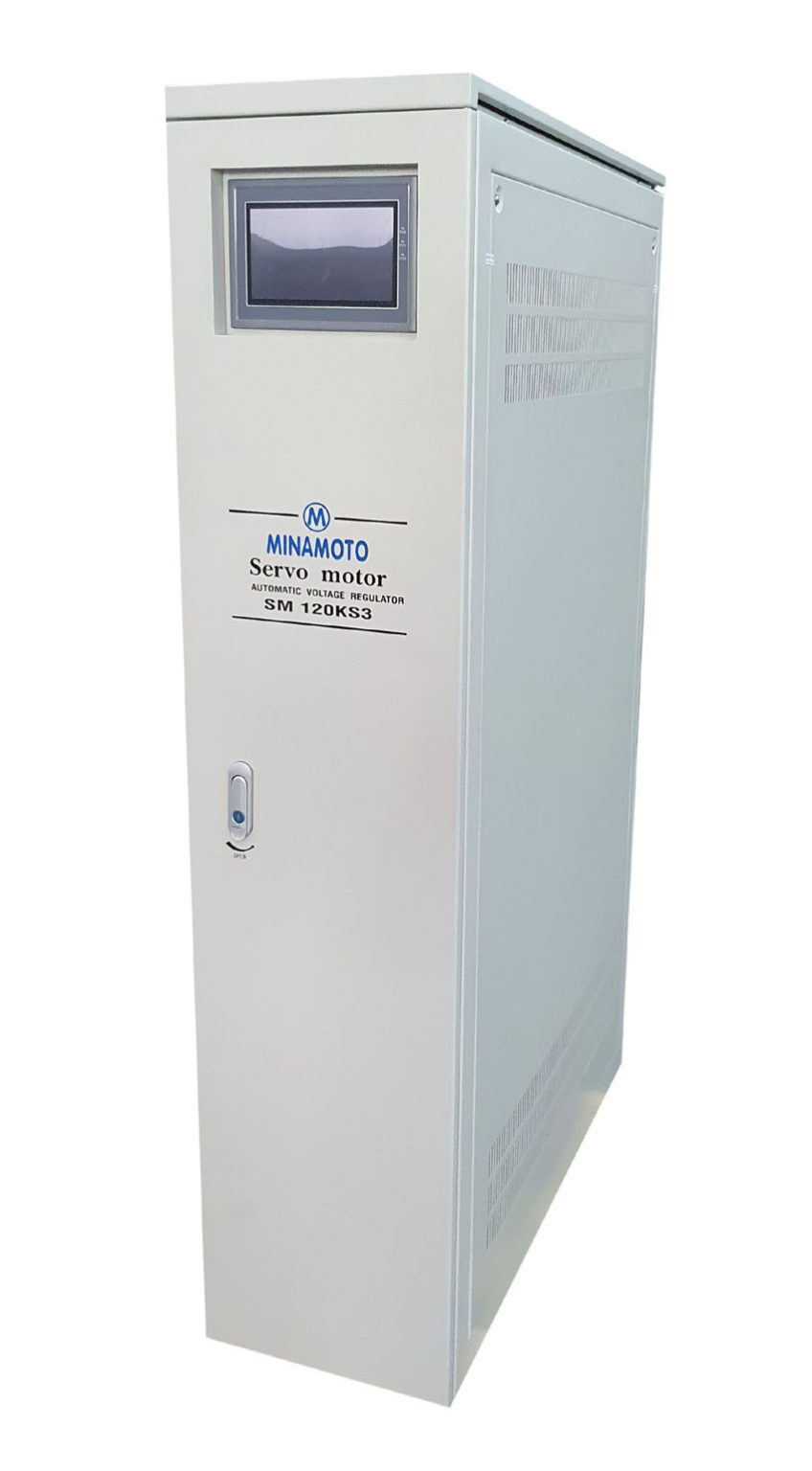

SM120KS3 Minamoto Servo Motor Control Stabilizer is a special designed AC automatic voltage regulator that has high stability, high efficiency and compact size. Using DC servo motor, the stabilizer has response time within 4 ~ 7 (over-voltage and under-voltage protection). It’s efficiency is higher than 95% and power factor higher than 0.95. This stabillizer has capacity 120.000 VA.
|
Description |
: |
SM120KS3 |
Capacity |
: |
120.000 VA |
AC In Voltage |
: |
304 ~ 456V |
AC Out Voltage |
: |
380 ± 1%V |
Frequency |
: |
50 Hz |
Response Time |
: |
4 ~ 7 (over-voltage and under-voltage protection) |
Efficiency |
: |
≥98% |
Ambient Humidity |
: |
< 90 % |
Operation Temp |
: |
-20 ~ +45ºC |
Control System |
: |
Central control module based on DSP |
Dimension(DxWxH) |
: |
930 x 405 x 1625 mm |
Weight |
: |
295 Kg |
|
